Linn Klimax Solo 500 Power Amplifier

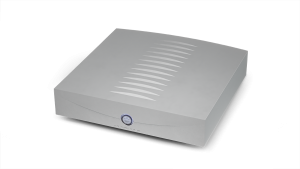

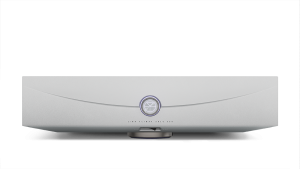

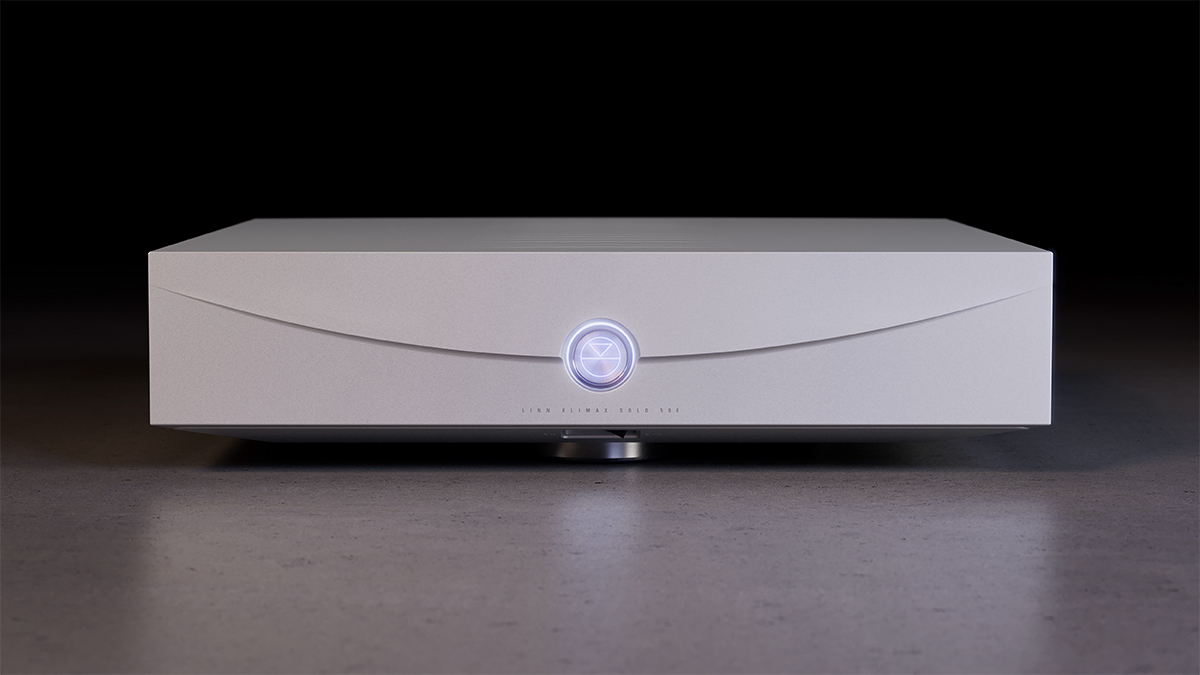

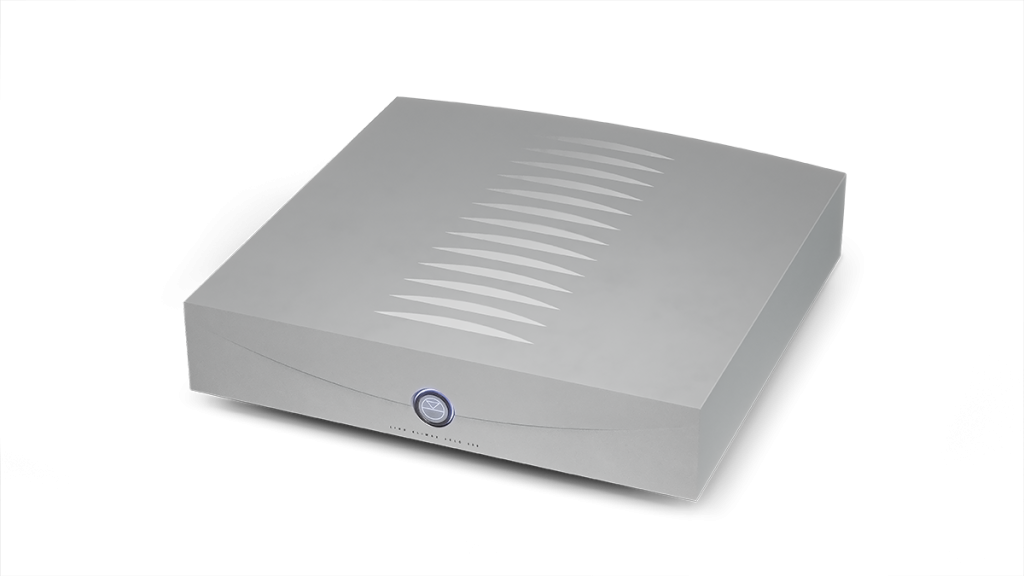

Linn Klimax Solo 500 monoblock power amplifier

The Linn Klimax Solo 500 dedicates its complete amplifier and power-supply architecture to one loudspeaker channel.

Using one amplifier for each channel allows the power supply, input circuitry and output stage to operate independently, making the Solo 500 suitable for demanding reference stereo and multi-amplified systems.

500 W of power from one compact amplifier

The Klimax Solo 500 delivers up to 500 W into a 4 Ω loudspeaker load or 250 W into 8 Ω.

This substantial output provides generous power reserves for compatible loudspeakers while helping the amplifier remain controlled during demanding musical peaks.

Adaptive Bias Control

Linn’s Adaptive Bias Control continuously monitors and regulates the bias current within the amplifier’s output stage.

The system adjusts to temperature, volume level, changes within the music signal and the amplifier’s operating life, helping maintain consistent performance while reducing distortion and background noise.

Self-regulating Utopik power supply

The Linn Utopik power supply automatically adjusts its supply voltages according to the music signal and the power required by the amplifier.

By delivering only the energy needed at a particular moment, the power supply reduces unnecessary heat, improves operating efficiency and supports the Solo 500’s compact design.

Hybrid Cooling Matrix

The Hybrid Cooling Matrix combines a hard-anodised heat plate with precision-machined fins and intelligently controlled internal fans.

During normal listening, heat is dispersed passively through the aluminium structure. During extended high-output use, the internal fans activate at the lowest speed required to maintain the appropriate operating temperature.

Fan operation is controlled in real time according to the amplifier’s internal temperature and the audio signal.

Balanced and unbalanced connections

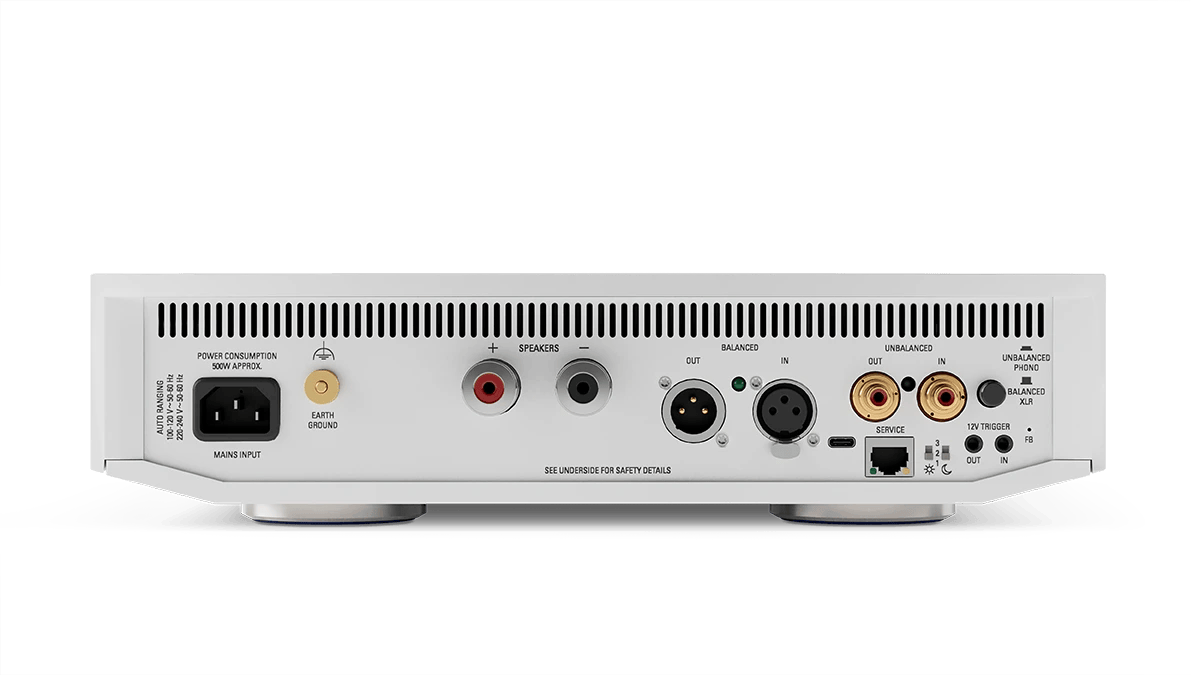

The Klimax Solo 500 provides one balanced XLR input and one unbalanced RCA phono input.

Matching XLR and RCA passthrough connections are also provided, allowing the signal to be passed to another compatible amplifier when constructing multi-amplified systems.

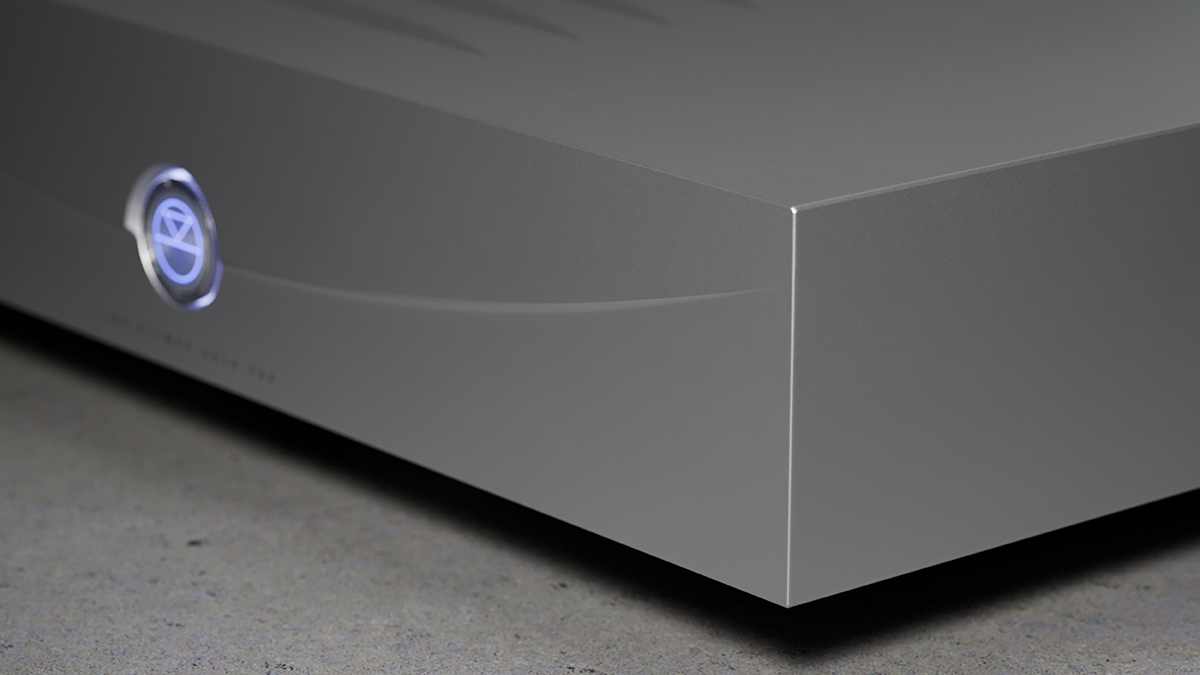

Machined aluminium construction

The amplifier’s exterior is precision-machined from three substantial aluminium sections comprising the base, upper enclosure and rear panel.

This construction creates a rigid, closely fitted enclosure while helping manage heat and protect the internal electronics from mechanical and electrical interference.

One amplifier for each channel

The Linn Klimax Solo 500 is a monoblock amplifier, so each unit powers one loudspeaker channel.

A conventional two-channel stereo system normally requires two Solo 500 amplifiers. Additional units may be required for compatible active or multi-amplified loudspeaker configurations.

Choosing Silver or Black

The Klimax Solo 500 is available with either Silver or Black anodised aluminium casework.

Both finishes share the same amplifier technology and can be selected to coordinate with Klimax DSM and other Linn components within the system.

Expert support from Rococo Systems

Rococo Systems can advise whether the Klimax Solo 500 is suitable for your loudspeakers, source equipment and intended system configuration.

We can also arrange demonstrations and provide advice on the number of amplifiers required, balanced or unbalanced connections, cabling, positioning, ventilation and future system development.

Professional setup

Professional delivery and system setup are available when the Linn Klimax Solo 500 is purchased from Rococo Systems.

Specialist electrical work, concealed cabling, equipment-rack alterations and integration involving products purchased elsewhere may be chargeable.

Linn warranty

The Linn Klimax Solo 500 is supplied with the applicable Linn manufacturer warranty, subject to current product, registration and territorial terms.

Rococo Systems can confirm the precise warranty arrangements before purchase.
