Linn Keel SE

£4,250.00 inc. VAT

The Linn Keel SE is a high-performance machined-from-solid sub-chassis and armboard upgrade for the Sondek LP12, designed to create a more rigid and precisely controlled structural connection between the turntable bearing and tonearm.

Premium sub-chassis and armboard upgrade for the Sondek LP12
Machined from a solid piece for exceptional structural rigidity
Integrates the sub-chassis and armboard into one precision component
Provides a stable foundation for the bearing and tonearm relationship
Ideal for high-performance LP12 upgrade builds
Professional installation and setup available from Rococo Systems

Installation: Keel SE forms part of the core mechanical structure of the LP12 and should be professionally installed and set up within the complete turntable.

Check Compatibility

Your product details will be included with the order request. We will confirm availability and the final specification before taking payment.

Description
Additional information

The Linn Keel SE is a high-performance sub-chassis and armboard upgrade for the Sondek LP12, machined from solid material to create a single rigid structural platform for the turntable bearing and tonearm.

By integrating these critical elements into one precision component, Keel SE reduces the number of mechanical interfaces within the deck and creates a more stable relationship between the record, bearing and cartridge.

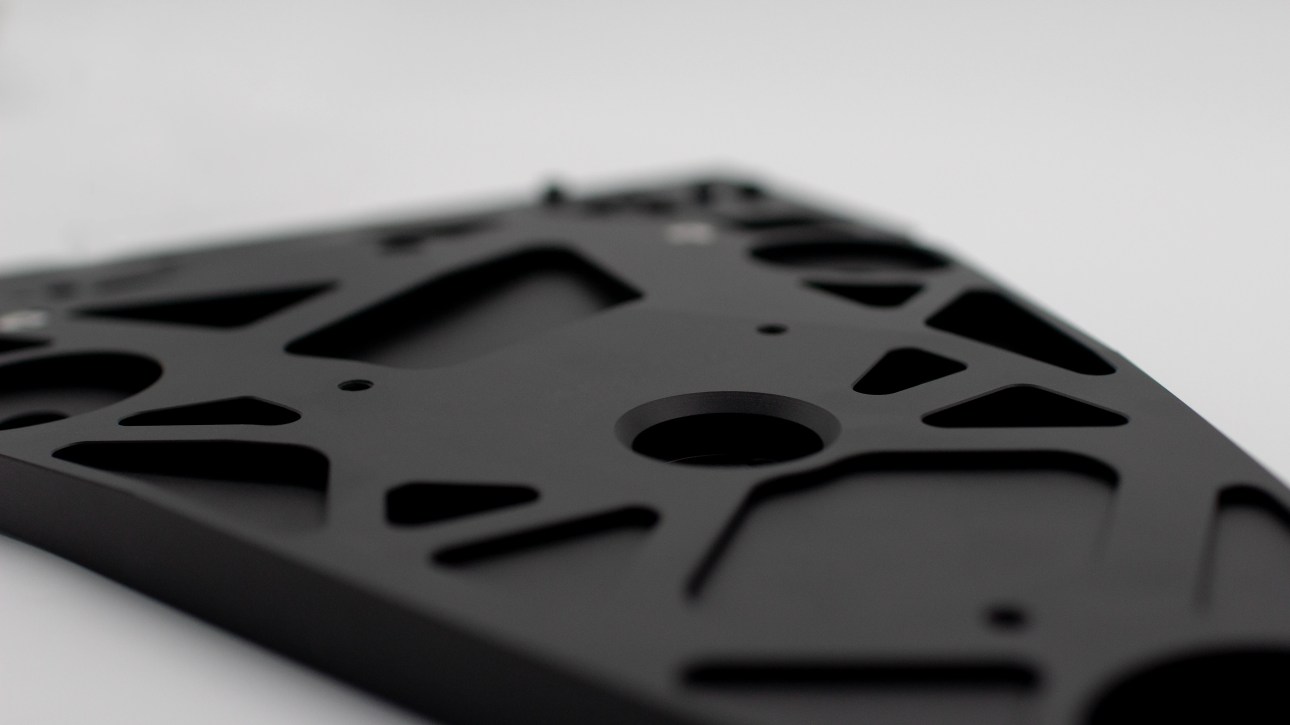

Linn Keel SE machined sub-chassis and integrated armboard for Sondek LP12

A more rigid heart for the LP12

Why the sub-chassis matters

The sub-chassis sits at the centre of the Sondek LP12’s mechanical architecture.

It supports the main bearing and tonearm while remaining suspended from the outer plinth, so its rigidity and dimensional accuracy directly influence how consistently those critical components relate to one another.

The Linn Keel SE replaces a conventional multi-part sub-chassis and armboard arrangement with a single precision-machined structure, creating a more stable mechanical reference within the turntable.

Machined from solid

The sub-chassis and armboard are created as one precision component rather than separate pieces joined together.

Integrated structure

Combining the bearing support and tonearm mounting platform helps minimise mechanical interfaces within the LP12.

High-performance LP12 upgrade

Keel SE is designed for ambitious Sondek LP12 builds where structural precision and rigidity are a priority.

High specification Linn Sondek LP12 showing premium structural upgrades including Keel SE

Bearing and tonearm working together

A more precise mechanical relationship

The cartridge reads microscopic movements from the record groove, so maintaining a stable geometric relationship between the platter bearing and tonearm is fundamental to vinyl replay.

Keel SE supports both of these elements from the same rigid structure.

By reducing flex and removing the junction between a separate sub-chassis and armboard, the Linn Keel SE creates a more consistent platform for the tonearm and bearing to operate from.

This is why Keel SE becomes particularly relevant as the rest of the LP12 specification advances.

More than a replacement armboard

One component instead of two

A conventional LP12 architecture uses a sub-chassis and separate armboard. Each component has its own structural role, but the joint between them becomes another mechanical interface within the deck.

Keel SE integrates both functions into one component.

This makes the upgrade fundamentally different from changing an armboard alone. The entire suspended structural platform supporting the bearing and tonearm is replaced.

Reduced mechanical interfaces

A one-piece design removes the separate sub-chassis-to-armboard connection found in conventional arrangements.

Greater structural consistency

The bearing and tonearm mounting points form part of the same precision-machined platform.

Built for system-level upgrades

Keel SE complements other high-performance LP12 components rather than operating as an isolated upgrade.

Part of a complete LP12 architecture

Keel SE comes into its own in a developed deck

The strongest LP12 upgrades rarely work in isolation. Each one strengthens a different part of the turntable’s mechanical or electrical architecture.

Keel SE focuses on the suspended structure carrying the bearing and tonearm, making it particularly valuable in systems already using, or moving towards, higher-performance motor control, tonearms and cartridges.

In a carefully specified LP12, the greater rigidity of Keel SE helps give those components a more stable mechanical platform to work from.

Linn Sondek LP12 playing a record in high-performance specification with Keel SE upgrade

Keel SE or Kore?

Choosing the right LP12 sub-chassis upgrade

Kore and Keel SE both upgrade the sub-chassis and armboard area of the Sondek LP12, but they sit at different levels within the upgrade path.

Kore uses an aluminium sub-chassis with a machined armboard and represents a substantial step beyond a standard LP12 structure.

Keel SE takes the concept further by machining the sub-chassis and armboard as one integrated component, removing the mechanical interface between the two.

For a highly developed LP12, Keel SE is the more ambitious structural solution. For other decks, Kore may represent the more proportionate upgrade.

Rococo Systems can assess the existing specification before recommending which route makes the most sense.

Keel SE, Bedrok and Radikal

Different upgrades, different jobs

Several major LP12 upgrades address different parts of the turntable, so they should be considered as pieces of one mechanical system rather than alternatives to one another.

Keel SE upgrades the suspended sub-chassis and armboard structure supporting the bearing and tonearm.

Bedrok upgrades the main plinth and provides a more rigid outer structural foundation.

Radikal upgrades the motor control and power-supply architecture.

Together, these components can form part of the same high-performance LP12 specification.

Plan the upgrade around your deck

Should Keel SE be your next LP12 upgrade?

Keel SE is a major mechanical upgrade, but the best next step for an LP12 always depends on the specification already fitted.

A turntable still using an earlier bearing, power supply or tonearm may benefit more from addressing another area first, while a deck with a strong surrounding specification may be ready to take full advantage of Keel SE.

Rococo Systems can review the complete turntable and recommend an upgrade sequence based on the deck itself rather than simply moving through components by price.

LP12 specification checkYour current deck can be reviewed before deciding whether Keel SE is the most effective next upgrade.

Professional installationThe existing sub-chassis and armboard can be removed and Keel SE installed correctly within the turntable.

Suspension setupThe LP12 suspension can be checked and adjusted after the new sub-chassis is fitted.

Tonearm alignmentThe tonearm can be correctly mounted and aligned as part of the installation.

Upgrade planningKeel SE can be considered alongside Bedrok, Radikal, tonearm and cartridge upgrades to create a coherent LP12 development path.

Ongoing Linn supportRococo Systems can continue to maintain, configure and develop the LP12 as the turntable evolves.

LP12 upgrade advice

Is Linn Keel SE right for your LP12?

Rococo Systems can review your current Sondek LP12 specification and advise whether Keel SE is the right structural upgrade for your deck.

Read Linn Keel SE details and specifications

Linn Keel SE specifications

Product overview

Product typeLP12 sub-chassis and armboard upgrade

Compatible turntableLinn Sondek LP12

Component typeIntegrated sub-chassis and armboard

ConstructionMachined from solid

Intended useStructural performance upgrade

UK recommended retail price£4,250 including VAT

Installation

InstallationProfessional LP12 installation recommended

Turntable rebuild requiredYes

Suspension setup requiredYes

Tonearm setup requiredYes

Compatibility checkRecommended before ordering

Supplied quantity1 Keel SE

What is Linn Keel SE?

Linn Keel SE is a premium integrated sub-chassis and armboard upgrade for the Sondek LP12. It is machined from solid material as one structural component rather than using a separate sub-chassis and armboard.

What does Keel SE replace?

Keel SE replaces the existing LP12 sub-chassis and armboard assembly, creating a single structural platform for the main bearing and tonearm.

What is included?

The £4,250 price covers one Linn Keel SE sub-chassis and armboard assembly. It does not include a tonearm, cartridge, bearing, power supply or other LP12 components.

Frequently asked questions

What does Linn Keel SE do?

Keel SE provides a rigid integrated platform for the LP12 bearing and tonearm, replacing the conventional arrangement of a separate sub-chassis and armboard.

Is Keel SE compatible with the Sondek LP12?

Yes. It is designed as a premium structural upgrade for the Linn Sondek LP12.

What is the difference between Keel SE and Kore?

Kore uses an aluminium sub-chassis with a machined armboard. Keel SE integrates the sub-chassis and armboard into one machined-from-solid structure, taking the mechanical design further.

Is Keel SE the same as an armboard upgrade?

No. Keel SE replaces both the armboard and the sub-chassis, so it changes a much larger part of the LP12’s suspended mechanical structure.

What is the difference between Keel SE and Bedrok?

Keel SE upgrades the internal suspended structure supporting the bearing and tonearm. Bedrok upgrades the outer plinth and structural foundation surrounding the turntable mechanics.

What is the difference between Keel SE and Radikal?

Keel SE is a structural sub-chassis and armboard upgrade. Radikal upgrades the LP12 motor and power-supply system. They address different areas of the turntable.

Should I upgrade to Keel SE before Bedrok or Radikal?

There is no universal upgrade order. The most valuable next step depends on the current specification of the LP12. Rococo Systems can assess the complete deck and recommend the most effective sequence.

Does Keel SE require professional installation?

Yes. The existing sub-chassis and armboard must be removed, the tonearm transferred or installed, and the LP12 suspension and alignment correctly set up afterwards.

Can Rococo Systems install Keel SE?

Yes. Rococo Systems can assess the existing turntable, install Keel SE and complete the suspension, tonearm and overall LP12 setup as part of the upgrade.

Product Type	LP12 Components
Linn Range	Sondek LP12
Compatible With	Sondek LP12
Product detail	LP12 sub-chassis and armboard upgrade
Component type	Integrated sub-chassis and armboard
Tonearm mounting	Integrated armboard
Installation	Professional installation recommended
Supplied quantity	1 Keel SE

Linn Keel SE
