PICSPLIT – Picture Split

Call for Price

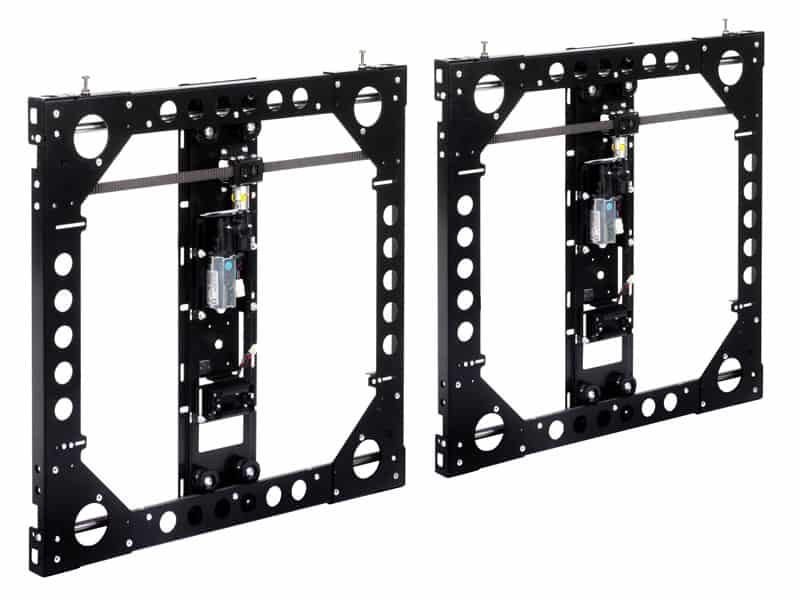

The Picture Split Mechanism is a dual horizontal moving panel mechanism that allows a flat screen to be concealed behind two pictures or panels. Ideal for when vertical height is not available, the Picture Split Mechanism drives two panels left and right to reveal the screen. A superb alternative to a single picture – the Picture Split opens up a wide range of design options to add to any interior decoration. (See PICSIDE or PIC Lift for single panel mechanisms.)

Availability:

Quiet and smooth action with a ‘ramped’ start and finish motion profile
Surface mounted design for simplified installation
Vibration isolated components
Easy adjustment of mechanism end stops
Sophisticated electronics help prevent ‘finger trapping’ between panels
Intelligent electronics keep mechanisms synchronised at all times

	PICSPLIT1	PICSPLIT2	PICSPLIT3
Max weight of moving panel	15 kg	15 kg	15 kg
Screen sizes	32-42”	42-55”	55-65”
Control Options	RS232 / Contact closure / IR	RS232 / Contact closure / IR	RS232 / Contact closure / IR
Movement Type	Motorised	Motorised	Motorised
Shipping dimensions	220x1000x300 mm	300x1100x800 mm	220x1000x300 mm
Shipping weight	35 kg	35 kg	35 kg
