PICH – Heavy Duty Picture Lift

Call for Price

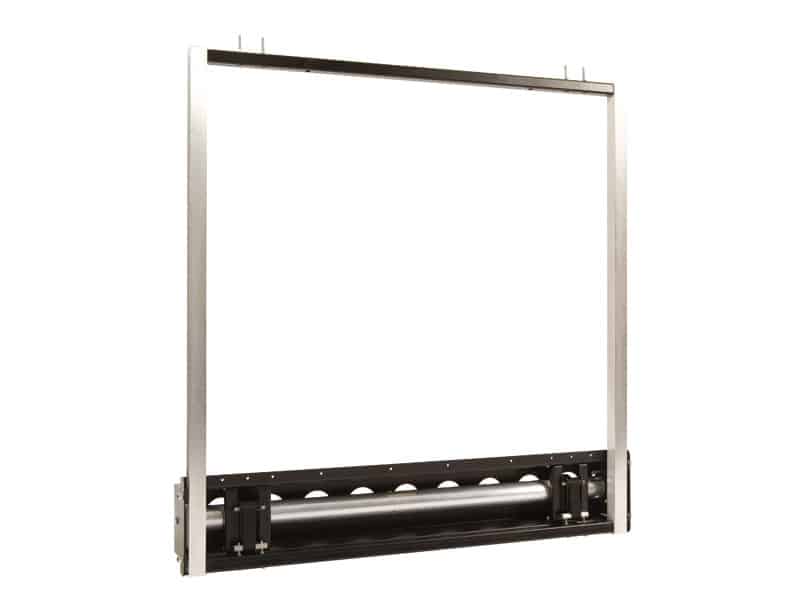

The Heavy Duty Picture Lift mechanism allows a flat screen to be concealed in a recess behind a heavy piece of art work or mirror. A range of travel options are available to allow any screen from 32” to 60” to be concealed. The single panel, picture or mirror can either raise or lower to reveal the screen – a brilliantly simple mechanism to conceal a screen in a wall. (For lighter panels see the PIC lift.)

Availability:

Range of travel distances
Smooth quiet motion
Option to combine with a motorized bracket
Complete sheet metal cassette ensures simple installation

	PICH1	PICH2	PICH3
Depth within wall	80 mm	80 mm	80 mm
Max weight of moving panel	35 kg	35 kg	35 kg
Total travel of panel	710 mm	860 mm	1010 mm
Control options	RS232 / Contact closure / IR	RS232 / Contact closure / IR	RS232 / Contact closure / IR
Movement type	Motorised	Motorised	Motorised
Shipping dimensions	1000x320x220 mm	280x1270x220 mm	100x300x220mm
Shipping weight	19.3 kg	19.3 kg	17 kg
