BUILDING SOMETHING SPECIAL

Fyne Audio F500SP SERIES


Fyne Audio F500SP Series continues building on the multi-award-winning F500 Series.

The F500 SP Series is a unique range of UK-built Special Production models.

Blending the refinements of F700 Series technology with the classic F500 Series cabinet design.

The result is our most affordable ‘premium’ loudspeaker range, boasting high-end components and patented acoustic technology.

All are crafted into conventional parallel-sided cabinets, hand-built, and finished in Fyne Audio’s Glasgow, UK factory.

The IsoFlareTM drivers in the Fyne Audio F500SP series are direct derivatives of the high-end, point source units designed for the F700 Series.

High-powered compression tweeters with neodymium motors and multi-fiber LF cones.

These deliver true isotropic radiation with an extremely flat frequency response out to over 30kHz.

Dynamic, powerful, and incredibly natural sounding, these exceptional point source drivers bring music alive with breathtaking details and class-leading imaging.

Fyne Audio furthered the refining of the F500 cabinets, the SP models integrate the more advanced BassTrax LF porting system from Fyne’s F700 and flagship F1 Series.

This includes the double-layer metal sandwich plinth and tractrix profile diffuser cone, designed to deliver the smoothest LF response and easy room integration.

Adding a touch of classical luxury, the Fyne Audio F500SP Series models are also available finished in piano gloss lacquered walnut veneer.

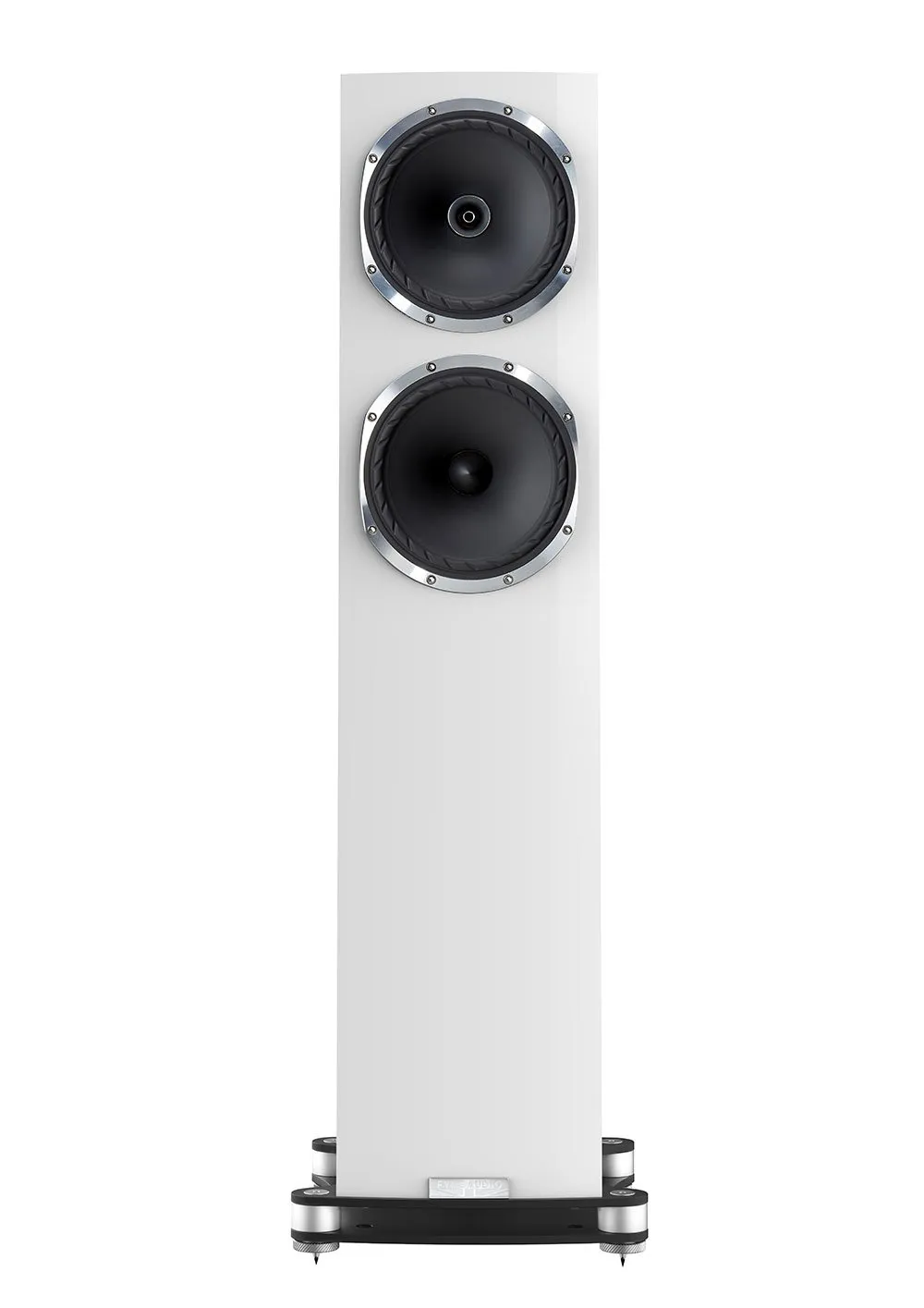

Fyne Audio F502SP Speaker in white

BASSTRAXTM PORT SYSTEM

All three SP models incorporate Fyne’s flagship BassTrax Tractrix bass porting system. Same as found in a larger format on the F700 and flagship F1 models. The system integrates a tuned downward firing port and a Tractrix profile cone. This converts plain wave port energy into a spherical 360-degree wavefront that exits uniformly through the plinth. The system smooths LF output by evenly dispersing energy into the room, making the speaker much less critical of room positioning.

CROSSOVER

With many crossover components and circuit architecture trickled down from the premium F700 loudspeakers
. F500 SP models bring a new level of refinement and detail to the already successful F500 design.
Low-loss laminated core inductors, high-grade polypropylene capacitors, and Van Den Hul Matched Crystal silver-plated OFC wiring ensure transparent signal transmission.
With final crossover and component tuning undertaken by Dr. Paul Mills.
The F500 SP Series integrate Fyne’s high-quality bi-wire terminal panel with a fifth loudspeaker terminal for driver chassis grounding.

PLINTH

Optimising floor coupling and better dissipating vibration in the F500 Series cabinets, floorstanding SP models use Fyne’s striking twin layer metal plinth. Machined from thick aluminium plates, the two sections are precisely separated by aluminium spacers for optimum integration with the BassTrax porting system. The integrated floor spikes are adjusted from the top of the plinth to make levelling easy, while knurled lock nuts clamp the spikes firmly in position. Machined aluminium cups are provided to protect wooden floors.

SPECIAL PRODUCTION ISOFLARE

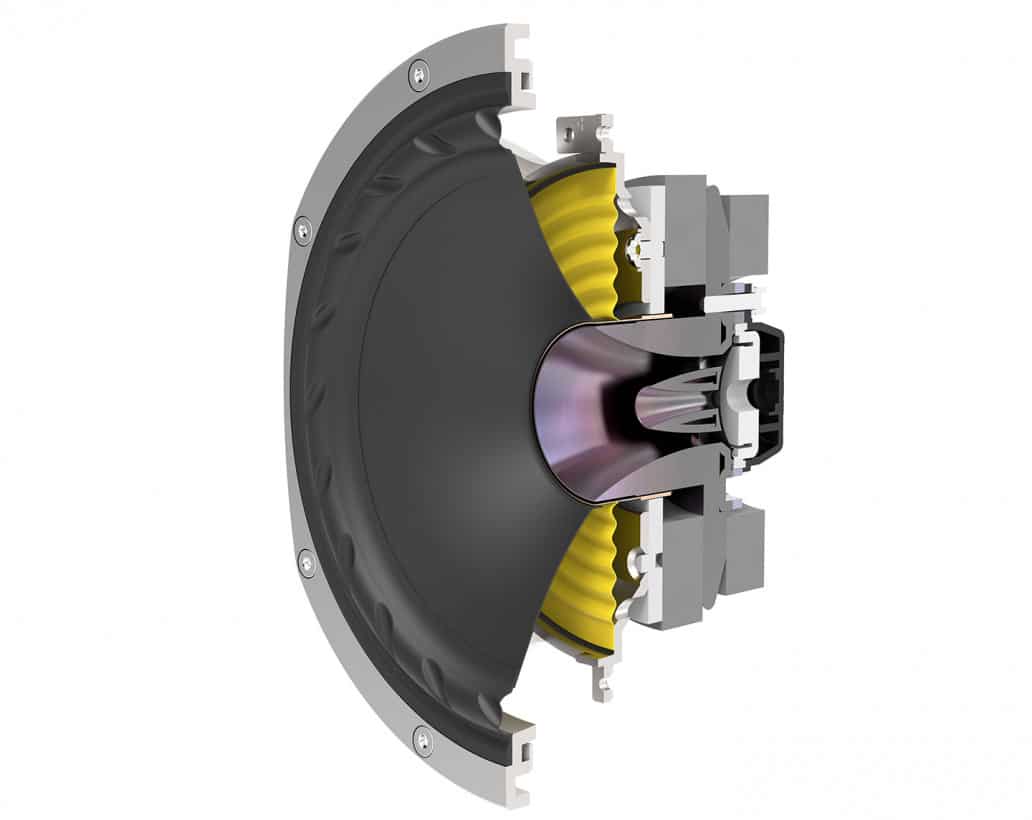

Compared to standard F500 Series loudspeakers, the most significant upgrade for Special Production models can be found in the new SP Isoflare drivers.

Combining our engineer’s decades of driver design expertise with advanced computer modelling has resulted in a cutting edge driver design.

This delivers a class leading music listening experience.

Offered in 6” (150mm) and 8” (200mm) variants, the SP Isoflare units borrow much of the technology developed for F700 models.

By including the F700’s 25mm magnesium diaphragm compression tweeter and multi-fibre cone with FyneFlute roll surround.

Fyne Audio F500 Loud Speaker

BRINGING THE DETAIL

The centrally positioned HF unit uses a powerful neodymium motor system.

It has a vented rear chamber to move fundamental resonance well below the crossover point.

The unique HF waveguide has undergone extensive computer modelling to deliver an optimised wavefront expansion rate.

Also flat frequency response out to its 30kHz design parameters.

The HF system is efficiently cooled by heatsinking through a metal pole piece.

This ensuring a smooth HF response even after extended high volume listening.


The SP cone is created from a bespoke multi-fibre mix designed to give an extremely natural sound.

This happens through the critical midband region along with the required stiffness to drive low frequency transients with minimal colouration.

Set in a bespoke rigid cast aluminium chassis, the LF motor system incorporates a separate flux focusing magnet.

This increases low frequency efficiency and maintain a flat response through low bass frequencies.

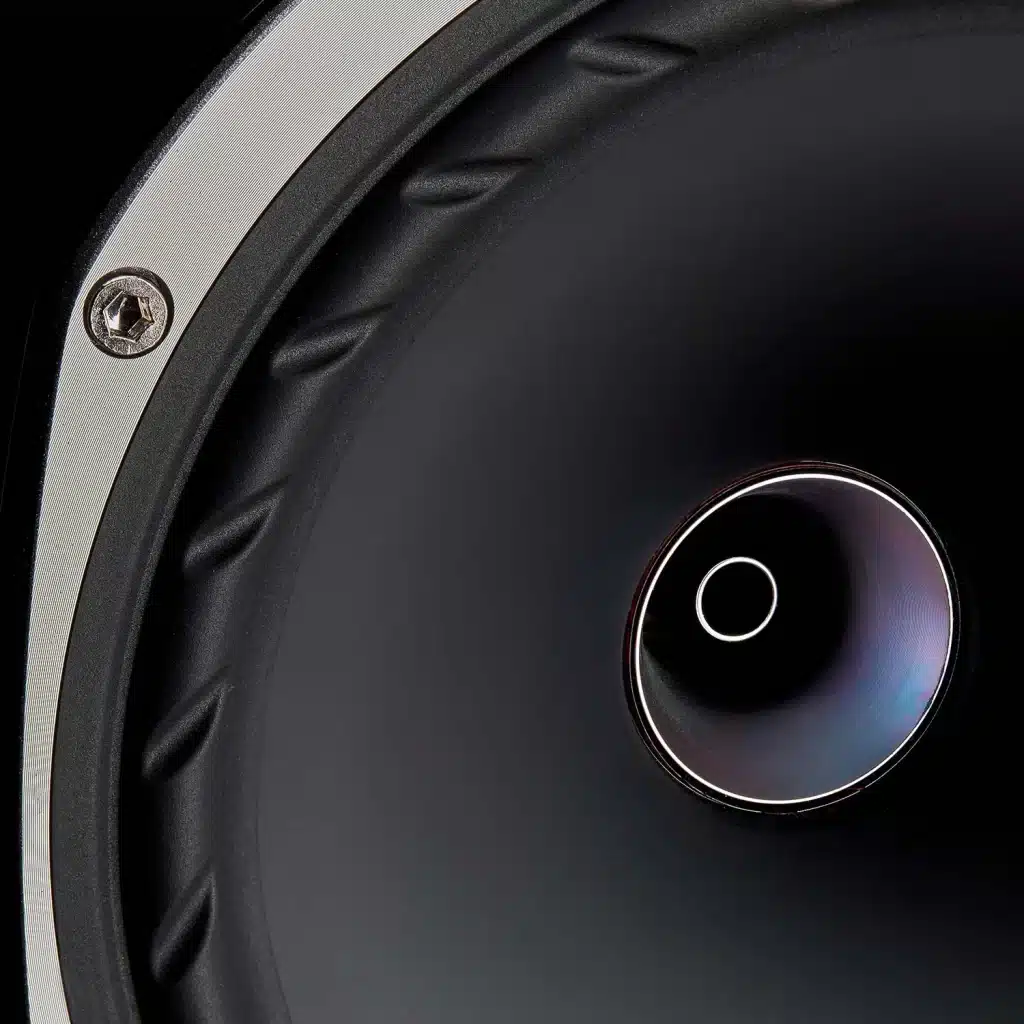

The LF cone is terminated with a FyneFlute roll surround, offering significant benefits in terminating unwanted cone energy over typical rounded profile surrounds.

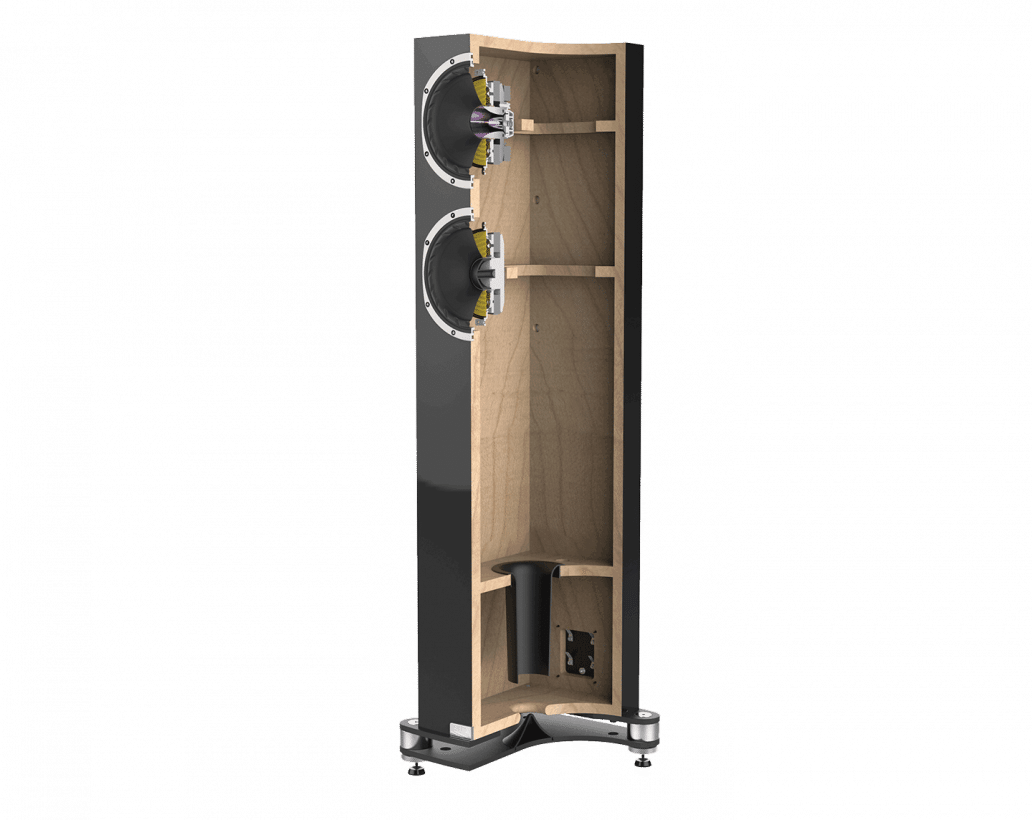

Fyne Audio Speaker inside view
Fyne Audio inside of floor standing loud speaker

CABINETS

At the heart of all SP Series loudspeakers is the award winning F500 Series cabinets, enhanced with subtle improvements to further refine performance. SP models use a higher density fibreboard to increase rigidity, plus a balanced combination of bonded acoustic fibre and polyether foam damping to control resonances. The parallel sided heavyweight construction is internally braced to further lower colouration. The concept extends to the driver/cabinet interface, the rear of each drive unit being coupled to the bracing spars with an energy absorbing damping mastic.

LUXURY FINISH

In addition to Piano Gloss Black and Piano Gloss White finish options also available on the standard F500 Series models.

Fyne Audio F500 SP models are available in a deeply lacquered Piano Gloss Walnut veneer.

Exceptional attention to small details includes a diamond machine cut finish on the exposed aluminium driver chassis.

Also magnetic grille mounts front and rear for storage (floor standing models only).

With Fyne’s premium five binding post gloss black terminal panel.

Designed, built, hand finished and pair matched by Fyne’s experts in the UK.

Special Production models join Fyne’s premium F700 and F1 Series as true British loudspeakers.
